SPECIFICATION
|

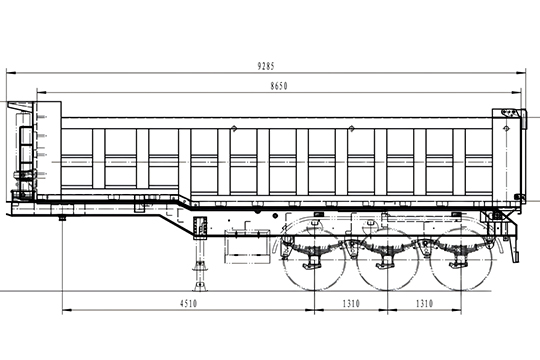

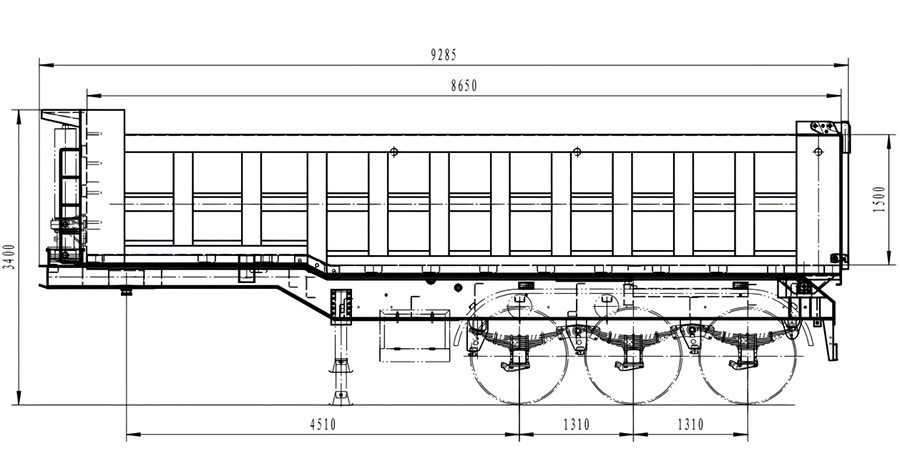

DIMENSIONS |
|
| Tare Weight | about 9T |
| Thickness | Floor 4mm ,side 4mm |
| Material | High tensile steel T700 |
| Brake Chamber Landing Gear | 28T |
| Six double big chamber | |
| Dimension | 9800*2500*3800mm |
| Axle | 13tons fuhua brand ，3 axles |
| Box size | 9500*2350*1500mm |
| Loading Capacity(cb m) | 34cbm |
| King Pin | JOST 2 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension |
| Leaf Spring | 10pcs leaves |
| Braking System | Brake System Dual Line |
| Rim | 8.50-20 12pieces |
| Tire | 1200R20 Triangle Brand 12 pieces |
| Painting | Customer-specific |
| Hydraulic cylinder | φ 196 hydraulic Cylinder |
